FiguraMax FM600

The FiguraMax FM600 is originally built as a Thermo Physical Cabin for practicing the world famous TPM Method. It means doing targeted exercises in a warm cabin or warm bed. Today, the TPM method is still the biggest market who uses the FiguraMax. However more and more side activities are being deployed into the FiguraMax, such as hot yoga, hot pilates and overal revalidation.

Key Features

  • beautiful and clean design
  • professional quality and low maintenance
  • upholstery is sweat resistant and flame reductant
  • best pulling, holding and retraction ratio of rope pullers
  • rope pullers can be changed within seconds
  • different kind of heating possibilities
  • microprocessor controlled timer and thermostat

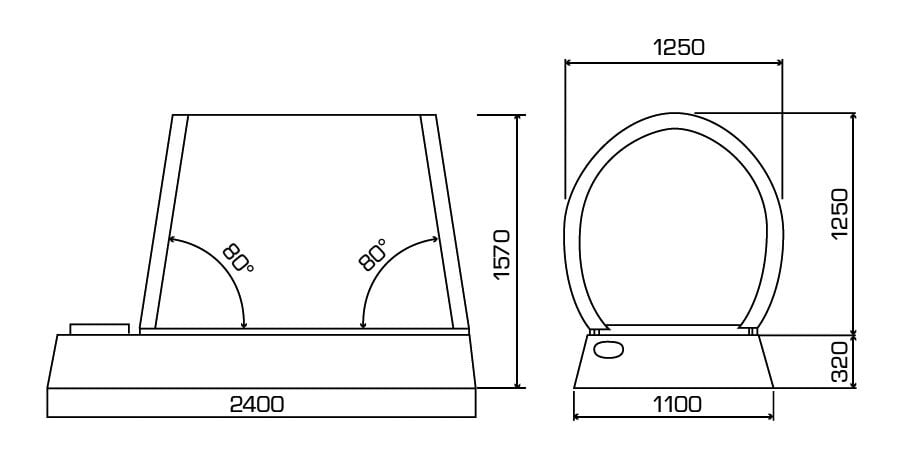

measurements in millimeters

cabin weight
cabin measurement
used heater element
mains EU
max/av. consumption
bed - material
upholstering - material
mattress - material
74 kg
L2400 x W1250 x H1500 mm
2 x 800W air heaters
240 / 50Hz - 16A
1600W / 680W

polyester color white

PU leather black
polyether cold foam
CE listed, UL listed soon
control panel
time by default
 temp. by default
 safety mode
 rope pullers
total number rope pullers
strength rope puller
removable version
open / close dome
adj. 1 - 90 minutes
 adj. 15 - 45 degrees
 after 5 minutes no use
 Atlas Copco RIL4C series
2 for hands + 2 for feets
adj. 1 - 2 kg by hand
yes, from the top in seconds
standard by hand

 options available

mains USA

special heaters

120V / 60HZ - 15A
  • other air heater wattages available upon request
  • Infra Red radiation panel heater 800 W / 240V / 50Hz
  • combination of air heater and Infra Red panel heater
electrically motorized dome 
cabin color
color upholstering
automated rope pullers
open/close via control panel
upon RAL selection
upon available colors
available soon
